HVF 100kV/1000pF Coupling Capacitor & Capacitive Voltage Divider
Home > Systems > AC Dielectric Test > High Voltage Divider > 100kv ~ 200kV Range

HVF 100kV/1000pF Coupling Capacitor & Capacitive Voltage Divider

Lead time: 30 days

Mode: HVF 100kV/1000pF
Rated Voltage: 100kV                                                              Dielectric Loss <0.5%
Frequency: 50Hz                                                                       Cooling: ONAN
Nominal Capacity: 1000pF                                                      PD Level <2pC at rated voltage
Nominal Dividing Ratio: 1000:1                                             Measuring Accuracy:≤±1%
Allowed Operating Time: working 60 min under 100% rated voltage; Continuous working allowed at 80% rated current & voltage
Structure: Oil-immersed type and with removable design in structure which composed by corona rings, LV arm, HV arm and removable base.
Dimension: φ150/φ500×1200 mm
Weight: <30kg

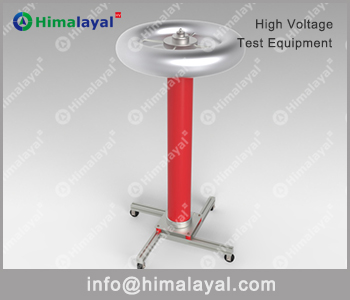

HVF100KV400pF Capacitor voltage divider HVF100KV400pF Capacitor voltage divider

HVF100KV400pF Capacitor voltage divider HVF100KV400pF Capacitor voltage divider

Principle Diagram:
