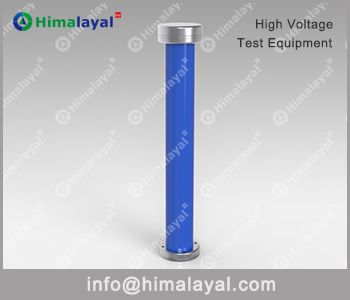

HID 100KV/400pF Weak Damping Capacitor Voltage Divider

Lead time: 30 days

Mode: HID 100KV-400pF
1) HV arm capacitor is consist of single stage capacitor: 100kV 400pF.
2) Standard lightning wave: ±100kV
3) HV rated capacitance: 400pF
4) Divider voltage ratio: 1000:1
5) Partial response time: Tα≤100nS
6) Over-shoot: β≤20%
7) Scale factor uncertainty: Kε≤±1%
8) The square wave response characteristic m0～9.9μS of GB311 standard.
9) Dimension: 0.8x0.8x1.8m

HID 100KV-400pF Weak Damping Capacitor Voltage Divider, Impulse Voltage Divider HID 100KV-400pF Weak Damping Capacitor Voltage Divider, Impulse Voltage Divider

HID 100KV-400pF Weak Damping Capacitor Voltage Divider, Impulse Voltage Divider HID 100KV-400pF Weak Damping Capacitor Voltage Divider, Impulse Voltage Divider

Principle Diagram:


Down load the Calibrating Certificate: page 1, page 2, page 3
