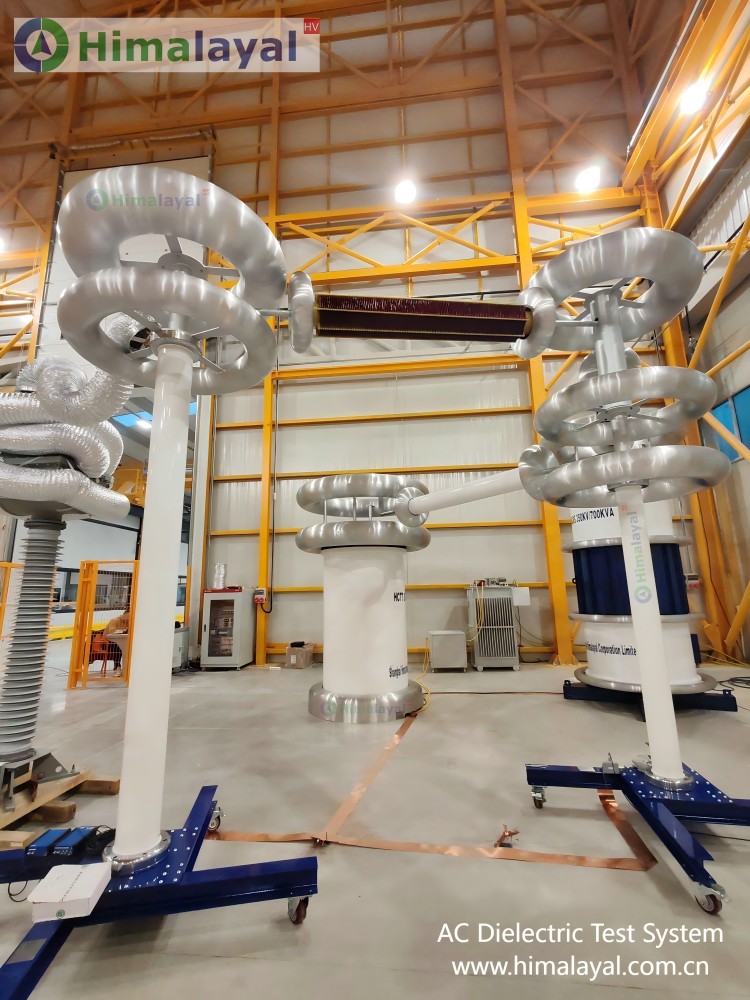

AC Dielectric Test Equipment on CT, PT, CVT

ac dielectric voltage test system himalayal
ac dielectric voltage test system himalayal
ac dielectric voltage test system himalayal
ac dielectric voltage test system himalayal
ac dielectric voltage test system himalayal
ac dielectric voltage test system himalayal

The AC Dilectric Test System for CT/PT/CVT, normally need to consider the high load of the CVT and also need to consider the different test frequency, e.g. 50Hz, 60Hz are normal power frequency, also need to consider the 120Hz, sometime 180Hz, This is different from most of other products.

So for such test, we will need to equips the frequency converter, and also the ferroresonant test device.

In order to feed with a relative low power, we adopt high voltage compensation reactor (Variable inductance) to increase the load capability.
