Gas Insulated Standard Capacitor HSC 50KV 100pF

Gas Insulated Standard Capacitor HSC 50KV 100pF Structure:

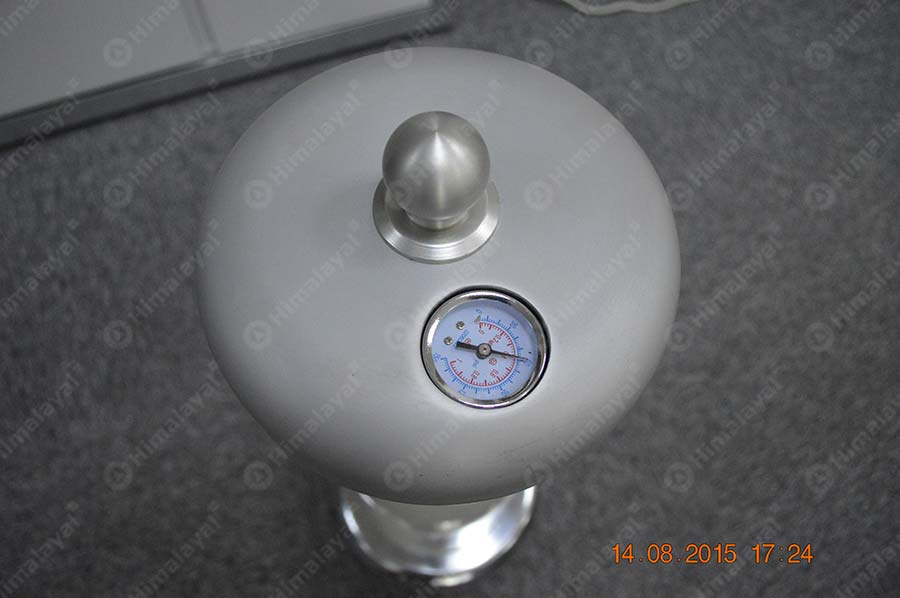

The shell is composed of base and cover made of insulating cylinders and steel plates. The base and cover are fastened to both ends of insulating cylinders through screws. There are corona covers at upper and lower ends of capacitor. The shell of capacitor is equipped with polished HV/LV electrodes. The capacitor filled with SF6 is equipped with pressure gauge and air valve.
