Variable Inductance Resonant Test System normally basic test equpment for GIS, CABLE, Bushing, CT/PT/CVT, transfromer, HV switch ...
Voltage Rating: 50kV ~ 2000kV
System configuration:
-AC inductance resonant reactor (50Hz/60Hz)
-Exciter transformer
-Voltage Regulator
-High voltage divider
-Current Limit inductance
-Resonant capacitor
-Injection capacitor(Option)
-Switchgear cabinet
-Automatic control system
- Peak voltmeter
When reactor high current and high power, or long cycle time, equipping cooling fins will be necessary.
The above systems the filter are done by single π, for better filter performance, double π or tripple π will be adopt.

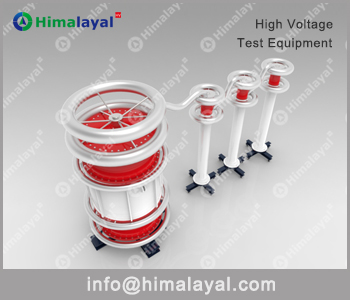

The reactor or divider/capacitor's top eletrode can be single stage corona ring or two stages corona rings. If not limit by the roof height, we proposal double rings.

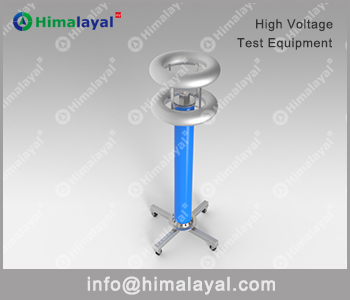

For high voltage divider, double rings or single rings.
Single rings:
Related Photos:
HIMALAYAL provides innovative products that comprise high voltage test equipment, full-set high voltage test instruments, on-site test systems and on-line monitoring systems, and services regarding tests, diagnostics and asset monitoring for clients in power industry. We help to ensure safety and reliability in the power generation, transmission and distribution.
