High Voltage Testing Laboratory Construction

High Voltage Test Lab HV Lab Himalayal
The High Voltage Test Lab is built for 110kV power transformer and 550kV Instrument transformer testing.
In the photo, the 110kV power transformer is just finish a perfert test in this lab.

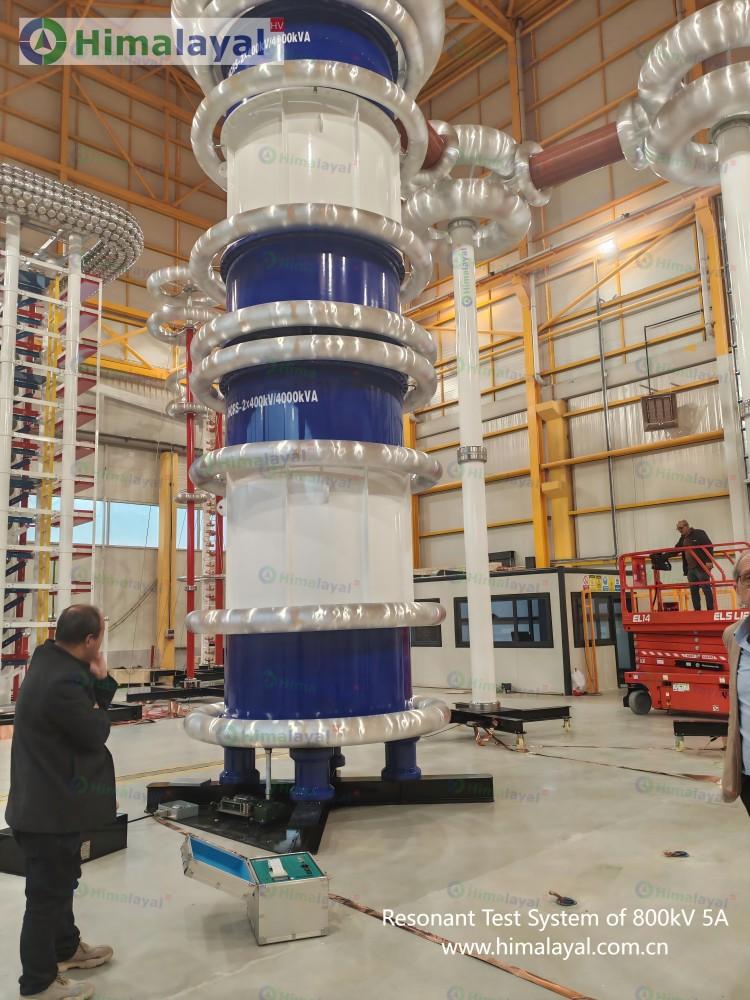

High Voltage Lab AC Resonant Test System HIMALAYAL
The resonant test system for the lab is HCRS 800kV 4000kVA Inductance Resonant Test system with Frequency convert in range of 30~300Hz to meet the test frequency requirement.
High Voltage Lab Impulse Generator Himalayal
The Impulse Generator is also Himalayal product HIVG 2400kV 240kJ, with chopping gaps, Lightning impulse and Switching Impulse Wave, also the lab equips the steeped wave generator for the steeped wave testing on insulator.
If you has similar HV Lab need to build, welcome to find HIMALAYAL.
