HVF 700KV/250pF HV Measuring and Coupling Capacitor
Home > Systems > AC Dielectric Test > High Voltage Divider > 600kV ~ 800kV Range

HVF 700KV/250pF HV Measuring and Coupling Capacitor

Lead time: 45 days

Mode: HVF 700KV/250pF
Rated Voltage: 700kV (consist of 2 stages, 350KV/500pF each)
Frequency: 50Hz                   Nominal Capacity: 250pF /+5-10%
Dielectric Loss: under 20°C, 0.9-1.1Un≤0.002
Short time withstand value: 1.2Un/60s
PD Measurement:≤3pC under rated voltage, ≤1pC at 80% rated voltage
Outer dimension: 2000mm*2000mm*6400mm
Weight: 280KG

HVF 700KV/250pF HV Measuring and Coupling Capacitor HVF 700KV/250pF HV Measuring and Coupling Capacitor

HVF 700KV/250pF HV Measuring and Coupling Capacitor HVF 700KV/250pF HV Measuring and Coupling Capacitor

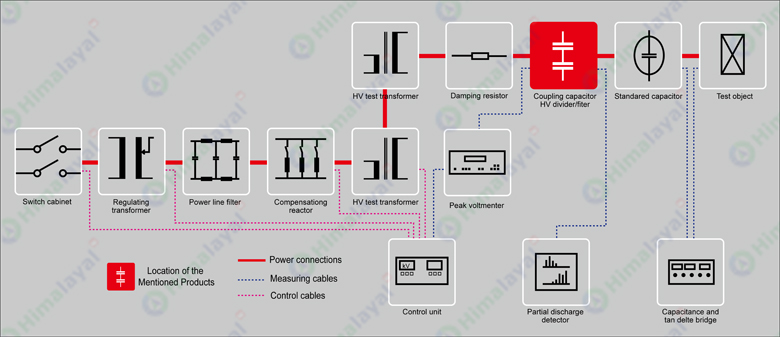

Principle Diagram:
